Hardware Selection
Select Railing Shape

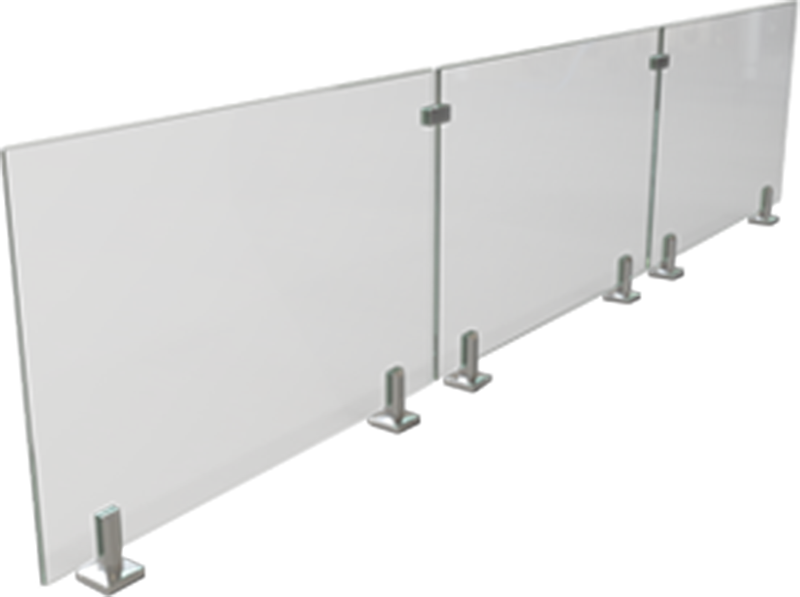

Inline
In the inline section, there is only a single side shape.

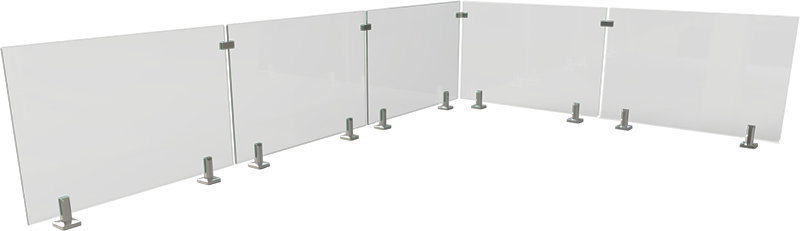

L Shape
In the L shape section, there are two sides in form of L shape.

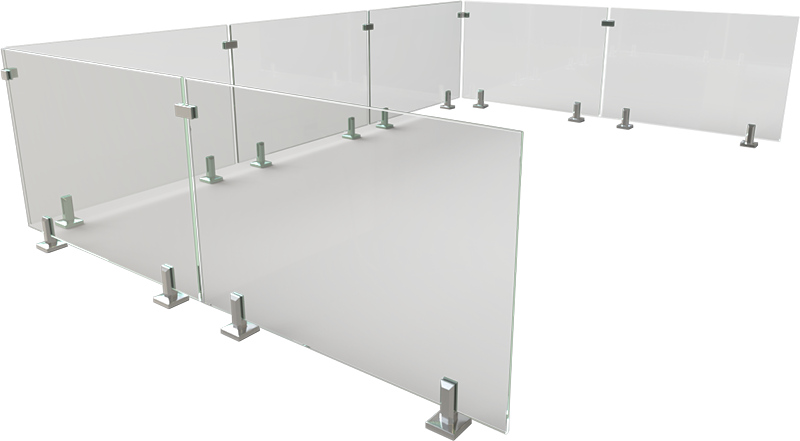

U Shape
In the U shape section, there are three sides align to each other.



Enclosed
In the enclosed shape section, there are four sides align with each other.

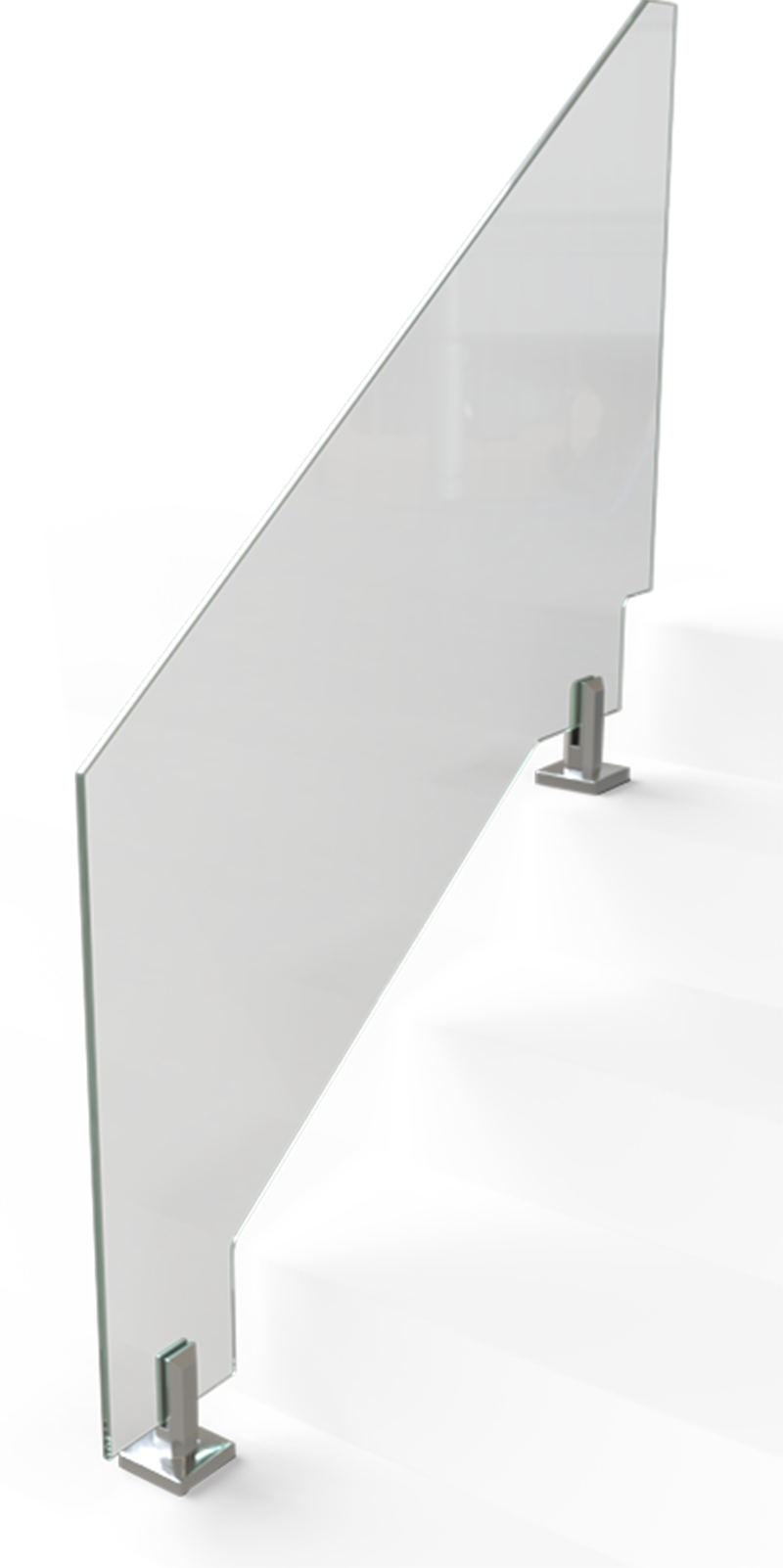

Stair
In the Stair section, there are one and two sides Railing.
Project Variables
Hardware

The bracket has four adjusting screws at the base with a stainless steel plate to help align and level a series of panels when the horizontal mounting surface is slightly uneven.
Spigot With Level Adjustment Screws – Polished Stainless Steel 2205:
Best stainless steel quality on the market. Duplex 2205 stainless steel, marine grade, anti corrosion....
Duplex 2205 is a two-phase, ferritic, austenitic 22% chromium, 3% molybdenum, 5 to 6% nickel alloyed stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, double that of the standard austenitic stainless steel grades.
*Not available in matte black

The bracket has four adjusting screws at the base with a stainless steel plate to help align and level a series of panels when the horizontal mounting surface is slightly uneven.
304 Stainless Steel (Ideal for Interior Applications):
Grade 304 stainless steel is generally regarded as the most common austenitic stainless steel. It contains... high nickel content that is typically between 8 and 10.5 percent by weight and a high amount of chromium at approximately 18 to 20 percent by weight. Other major alloying elements include manganese, silicon, and carbon. The remainder of the chemical composition is primarily iron.
The high amounts of chromium and nickel give 304 stainless steel excellent corrosion resistance. Common applications of 304 stainless steel include:
- Commercial food processing equipment
- Fasteners
- Piping
- Heat exchangers
- Structures in environments that would corrode standard carbon steel.
- Appliances such as refrigerators and dishwashers

The bracket has four adjusting screws at the base with a stainless steel plate to help align and level a series of panels when the horizontal mounting surface is slightly uneven.
Spigot With Level Adjustment Screws – Polished Stainless Steel 316 :
Similar to 304, Grade 316 polished stainless steel has high amounts of chromium and nickel. 316 also contains silicon,... manganese, and carbon, with the majority of the composition being iron. A major difference between 304 and 316 polished stainless steel is the chemical composition, with 316 containing a significant amount of molybdenum; typically 2 to 3 percent by weight vs only trace amounts found in 304. The higher molybdenum content results in grade 316 possessing increased corrosion resistance.
316 polished stainless steel is often considered one of the most suitable choices when selecting an austenitic stainless steel for marine applications. Other common applications of 316 stainless steel include:
- Chemical processing and storage equipment
- Refinery equipment
- Medical devices
- Marine environments, especially those with chlorides present

The bracket has four adjusting screws at the base with a stainless steel plate to help align and level a series of panels when the horizontal mounting surface is slightly uneven.
304 Matte Black:
Grade 304 stainless steel is generally regarded as the most common austenitic stainless steel. It contains... high nickel content that is typically between 8 and 10.5 percent by weight and a high amount of chromium at approximately 18 to 20 percent by weight. Other major alloying elements include manganese, silicon, and carbon. The remainder of the chemical composition is primarily iron.
The high amounts of chromium and nickel give 304 stainless steel excellent corrosion resistance. Common applications of 304 stainless steel include:
- Commercial food processing equipment
- Fasteners
- Piping
- Heat exchangers
- Structures in environments that would corrode standard carbon steel.
- Appliances such as refrigerators and dishwashers

The bracket has four adjusting screws at the base with a stainless steel plate to help align and level a series of panels when the horizontal mounting surface is slightly uneven.
Spigot With Level Adjustment Screws – Matte Black 2205:
Best stainless steel quality on the market. Duplex 2205 Matte Black stainless steel, marine grade, anti corrosion....
Duplex 2205 is a two-phase, ferritic, austenitic 22% chromium, 3% molybdenum, 5 to 6% nickel alloyed stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, double that of the standard austenitic stainless steel grades.
*Not available in matte black

Matte Black Adjustable Standoff - 1.5" Diameter and 1.5" Base Height
- Stainless Steel 316
- Includes: 1.5" Diameter Standoff Base (Threaded 3/8" - 16), 1.5" Diameter Standoff Cap

Polished Stainless Steel Adjustable Standoff - 1.5" Diameter and 1.5" Base Height
- Stainless Steel
- Includes: 1.5" Diameter Standoff Base (Threaded 3/8" - 16), 1.5" Diameter Standoff Cap

Polished Stainless Steel Adjustable Standoff - 1.5" Diameter and 2.0" Base Height
- Stainless Steel
- ncludes: 1.5" Diameter Standoff Base (Threaded 3/8" - 16), 1.5" Diameter Standoff Cap

Matte Black Adjustable Standoff - 1.5" Diameter and 2.0" Base Height
- Stainless Steel
- Includes: 1.5" Diameter Standoff Base (Threaded 3/8" - 16), 1.5" Diameter Standoff Cap

Matte Black Side Mounted Spigot - Stainless Steel 2205
- Stainless Steel 2205
- Includes: 2" Diameter Standoff Base (Threaded: 3/8" - 16), 2" Diameter Standoff Cap, Hanger Bolt

Polished Stainless Steel Side Mounted Spigot - Stainless Steel 2205
- Stainless Steel 2205
- Includes: 2" Diameter Standoff Base (Threaded: 3/8" - 16), 2" Diameter Standoff Cap, Hanger Bolt
Railing Height

36 Inches
Minimum Height of 900mm (36 in.) in residential applications. If the surface is over 180 cm (6 ft.) from the finished floor, the guardrail must be at least 1070 mm (42 in.) high.
42 Inches
Minimum Height of 1070mm (42 in.) in commercial applications. For residential applications, if the surface is over 180 cm (6 ft.) from the finished floor, the guardrail must be at least 1070 mm (42 in.) high.
60 Inches
In rare occasions, municipalities may require 1.5 meters (5 ft.) high enclosures. Please refer to your local swimming pool safety regulation for more details
48 Inches
Any outdoor basin of water must be surrounded by an enclosure restricting access to it. The enclosure must be at least 1.2 meters (4 ft.) high at all points. *In rare occasions, municipalities may require (5 ft.) high enclosures.
Top Rail Options












No Top Rail - Fully Frameless Railing
Maximize visibility without compromising on safety. Our fully frameless railings are certified for residential and commercial uses
2205 Stainless Steel Square Top Rail
Covers and protects the top of glass panels. Installed on top of glass panels to protect and stabilize glass railings.
Glass Type


2 x 1/4" Clear Tempered Laminated Glass with PVB Clear Film (Total Thickness 1/2")
Laminated tempered glass is a type of safety glass composed of two or more layers of glass with a layer of interlayer material (such as polyvinyl butyral (PVB)) sandwiched between them. The interlayer holds the glass together when shattered, reducing the risk of injury and damage. Tempered glass is heat-treated for increased strength and safety, making it more resistant to breakage and better able to withstand impact
Spans & Gates
Spacing between Glass Panels: 1 inch
End Spacing if 90 Degree Corner: 3/4 inch

-
48.78 in
panel -
48.78 in
panel
Measurements




Span Length: Total Length (i.e. Multiple Panels)

-
45.62 in
panel -
45.62 in
panel -
45.62 in
panel -
45.62 in
panel
Measurements

Specific Span Information
-
A
-
B
-
C
-
D
Spacing between Glass Panels: 1 inch
End Spacing if 90 Degree Corner: 3/4 inch

-
49.06 in
panel - 49.06 in
panel - 49.06 in
panel - 49.06 in
panel
Measurements










Spacing between Glass Panels: 1 inch
End Spacing if 90 Degree Corner: 3/4 inch

-
49.06 in
panel - 49.06 in
panel - 49.06 in
panel - 49.06 in
panel
Measurements










Specify Spans & Stair For Inline
Span Length: Total Length (i.e. Multiple Panels)
Measurements

Plan & Component List
Component List
12x | 950mm W x 1200mm H toughened glass panel |
6x | 1950mm W x 1200mm H toughened glass panel |
36x | Stainless steel spigots |
Product : Stair
Sub Total

Plan & Component List
Component List
12x | 950mm W x 1200mm H toughened glass panel |
6x | 1950mm W x 1200mm H toughened glass panel |
36x | Stainless steel spigots |
Product : Stair
Sub Total

Plan & Component List


Plan & Component List
Component List
QTY | Description | Cost |
---|---|---|
12x | 950mm W x 1200mm H toughened glass panel | |
6x | 1950mm W x 1200mm H toughened glass panel | |
36x | Stainless steel spigots |
Product : Inline
Sub Total


Plan & Component List
Component List
Product : Inline
Sub Total


Plan & Component List
Component List
12x | 950mm W x 1200mm H toughened glass panel |
6x | 1950mm W x 1200mm H toughened glass panel |
36x | Stainless steel spigots |
Product : Inline
Sub Total


Plan & Component List
Component List
QTY | Sku | Description | Unit Price | Total Price |
---|
Product : Inline Shape

Plan & Component List
Component List
QTY | Description | Cost |
---|---|---|
12x | 950mm W x 1200mm H toughened glass panel | |
6x | 1950mm W x 1200mm H toughened glass panel | |
36x | Stainless steel spigots |
Sub Total



















Measurement
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.


Save Plan

Choose the span

Hardware List

180° Square Glass-to-Glass Railing Clamp - Polished Stainless Steel
Fixed bracket to connect two glass panels in a straight line. Glass panel holes are not required. Allen key system tightens the glass in place. Stainless steel finish.

90° Square Glass-to-Glass Railing Clamp - Polished Stainless Steel
Fixed bracket to connect two glass panels in a straight line. Glass panel holes are not required. Allen key system tightens the glass in place. Stainless steel finish.

Adjustable Square Glass-to-Glass Railing Clamp - Polished Stainless Steel
Adjustable bracket to connect two glass panels in any angles from 90°-180°.
-90°-180° adjustment....
-Slide and rotate; no screw assembly.
-Glass panel holes are not required. Allen key system tightens the glass in place.
– Stainless steel Finish
Read more

135° Square Glass-to-Glass Railing Clamp -Polished Stainless Steel
Fixed bracket to connect two glass panels in a corner. ...
- Forms a 135° angle.
- Polished Stainless Steel
- Glass panel holes are not required. Allen key system tightens the glass in place

Square Clamp for Railing – Flat Mount
Solid stainless steel glass clamp designed for a wall-to-glass mounting or a post to glass mounting. These clamps have a flat base for surface mounting. ...
- Use at both ends of the fence to add rigidity to the railing structure.
- Glass panel holes are not required. Allen key system tightens the glass in place.
- Polished Stainless steel finish
- Used with 6mm to 12 mm Safety Glass Thickness (1/4″ to 1/2″)

Spigot with Adjustable Screws Connector
Similar to 304, Grade 316 stainless steel has high amounts of chromium and nickel. 316 also contains silicon,... manganese, and carbon, with the majority of the composition being iron. A major difference between 304 and 316 stainless steel is the chemical composition, with 316 containing a significant amount of molybdenum; typically 2 to 3 percent by weight vs only trace amounts found in 304. The higher molybdenum content results in grade 316 possessing increased corrosion resistance.
316 stainless steel is often considered one of the most suitable choices when selecting an austenitic stainless steel for marine applications. Other common applications of 316 stainless steel include:
- Chemical processing and storage equipment
- Refinery equipment
- Medical devices
- Marine environments, especially those with chlorides present

Standoff with Adjustable Screws Connector
- Stainless Steel 316
- Includes: 2" Diameter Standoff Base (Threaded: 3/8" - 16), 2" Diameter Standoff Cap, Hanger Bolt

Polished Stainless Steel Side Mounted Spigot - Stainless Steel 2205
- Stainless Steel 2205
- Includes: 2" Diameter Standoff Base (Threaded: 3/8" - 16), 2" Diameter Standoff Cap, Hanger Bolt

Top Rail 180° Connector - Polished Stainless Steel
R-TR-180CSS

Top Rail 90° Connector - Polished Stainless Steel
R-TR-90CSS

Top Rail End Cap
R-TR-ECSS

Top Rail Wall Connector
R-TR-WCSS

Top Rail Horizontal Adjustable Connector
R-TR-HAJCSS

Top Rail Downward Adjustable Connector
R-TR-DAJCSS
Choose Hardware

Save Plan
