Wall-to-Glass Movable Transom Clamp

The Wall-to-Glass Movable Transom Clamp is designed to allow smooth and controlled rotation of a movable glass transom, making it suitable for steam release applications in frameless glass enclosures. A nylon washer between the clamp and the wall enables movement while maintaining a secure connection.. The clamp can be mounted directly to the wall or ceiling with a small clearance between the glass and the mounting surface.

Key Features:

 – For 3/8″ to 1/2″ (10mm to 12mm) monolithic tempered glass.

 – Swiveling transom function for steam release.

 – Wall-to-glass installation for a stable connection.

 – Nylon washer allows for smooth operation.

 – Solid brass construction for reliability.

 – Maximum transom size: 20″ x 34″

Note that glass fabrication is necessary to accommodate the clamp.

Our shower hardware finishing process includes three different applied methods, each resulting in a durable, corrosion-resistant, and visually appealing finish. These methods include electrophoresis (Matte Black), chrome plating (chrome), and nickel plating (Brushed Nickel). Regardless of the chosen option, our hardware finish process guarantees a beautiful, long-lasting finish that meets the highest industry standards for quality and durability, providing exceptional performance and visual appeal.

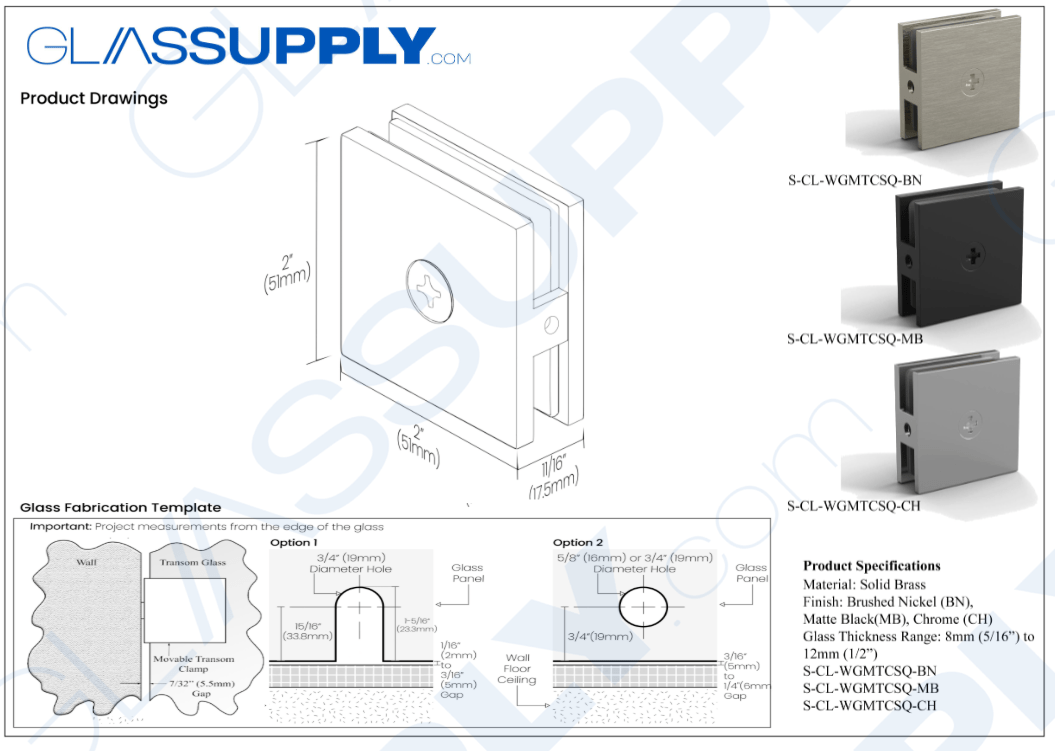

TECHNICAL SPECIFICATIONS
