GS 2205 Duplex Stainless-Steel Surface Mount Spigot

GS 2205 Duplex Stainless-Steel Surface Mount Spigot

$80.00$90.00

Introducing our GS 2205 Duplex Stainless-Steel Surface Mount Spigot with Level Adjustment Screws, designed to simplify the installation of glass panels, including on uneven horizontal surfaces.

Our Surface Mount Spigot package includes multiple gasket thickness inserts that can accommodate glass panels ranging from ⅜” inch (10 mm) to 9/16 inch (13.5 mm) in thickness.

Our uniquely designed enlarged U Slot sets our Spigot apart from others on the market by making installation easier than ever. With the expanded slot, alignment becomes effortless. Simply insert the glass and adjust as needed, using the provided gasket. (For 12mm glass, a single gasket is needed.) Then, tighten the Allen screw in place.

The addition of a ground feature on the spigot base guarantees compliance with specific jurisdictional grounding requirements.

Equipped with four leveling adjusting screws and a stainless-steel plate, this spigot streamlines the alignment and leveling of multiple glass panels effortlessly. Our newly adjustable pressure plate simplifies glass plumbing – tighten the top grub screw to tilt the glass inwards and the bottom grub screw to tilt it outwards.

Additionally, the railing can be shimmed at the glass level for height adjustment. Each package includes setting blocks, allowing for glass adjustment of up to ½” in height.

Crafted with the highest-quality Duplex 2205 stainless-steel alloy, this marine-graded, anti-corrosion alloy is known for its superior strength and resistance to corrosion in harsh outdoor environments.  We take pride in providing only the best stainless-steel quality on the market. Our Duplex 2205 stainless steel alloyed with 22% chromium, 3% molybdenum, and 5 to 6% nickel provides superior corrosion resistance and more than double the yield strength of the standard austenitic stainless-steel grade.

Our Frameless Glass Railing Systems are designed to provide maximum safety and security, and we have taken every measure to ensure that it meets or exceeds the highest engineering standards. The GS 2205 Duplex Stainless-Steel Spigot with Level Adjustment Screws has undergone rigorous testing and has passed engineering load tests for multiple building codes. You can have confidence in the quality and reliability of our products. Contact us today for more information and take the first step in upgrading your railing system to the highest level of safety and security.

Choose from a polished (brushed) stainless-steel finish or a smooth Matte Black finish that’s electrostatically applied powder-coated and oven-cured for a scratch-resistant, weather-protected surface. Ideal for both interior and exterior applications, it offers excellent corrosion resistance, making it perfect for structures with a high degree of corrosion, such as coastal regions and swimming pool environments.

Upgrade your glass panel installation with our GS 2205 Duplex Stainless-Steel Surface Mount Spigot with Level Adjustment Screws, the perfect combination of functionality and style.

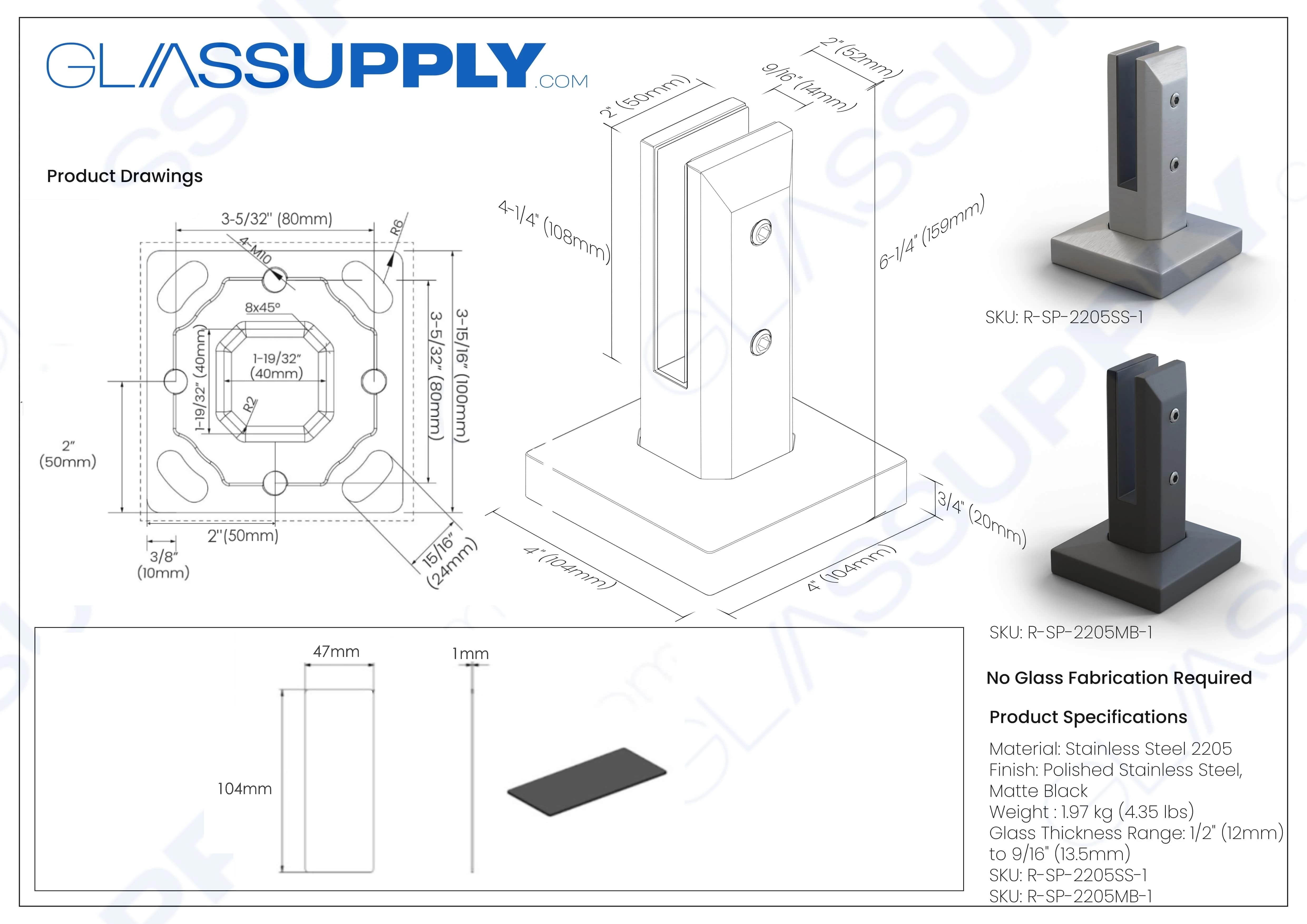

TECHNICAL SPECIFICATIONS

Safety Glass Thickness 3/8” (10 mm) to 9/16” (13.5 mm) glass panels
Color/Finish Polished Stainless Steel, Matte Black
Manufacturing Material Duplex 2205 Stainless Steel
Recommended Location Usage Interior, Exterior
