GS Adjustable Base Shoe System
GS Adjustable Base Shoe System
$110.00
Introducing our Patented* GS Adjustable Base Shoe System, designed to simplify the installation and alignment of glass panels, including on uneven horizontal surfaces.

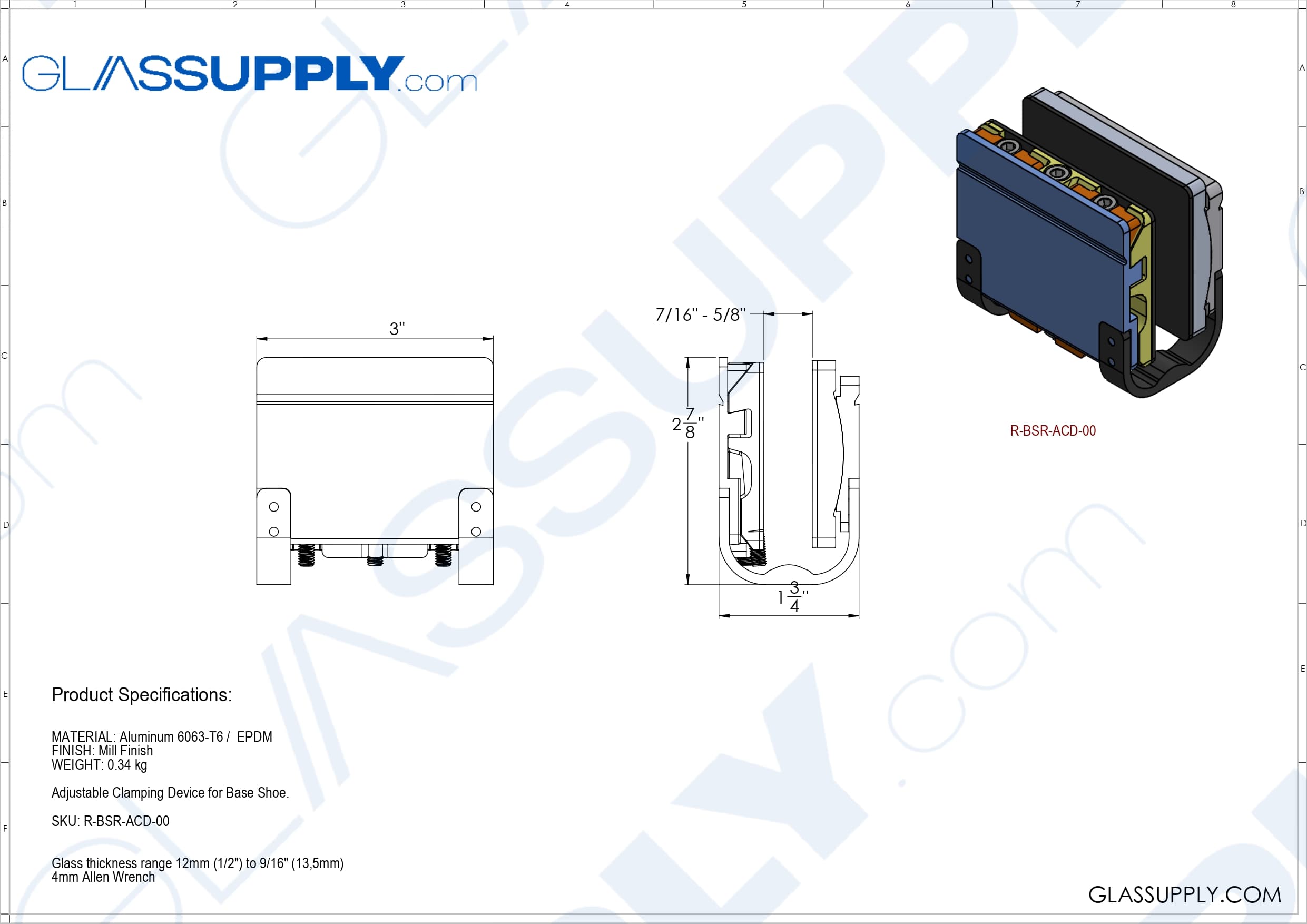

The Internal Adjustable Clamping Device (R-BSR-ACD-00) facilitates glass panels to tilt up to 2 degrees, providing the equivalent of over 1.5 inches of plumbing in either direction. This ensures impeccable alignment on every occasion,even in cases where the base shoe sections are not entirely even. This feature is especially advantageous for fully frameless setups where no clamps or top rail are added to the upper section of the glass.
Another distinctive aspect of the GS Adjustable Base Shoe System is its capability for the entire installation process to be completed from the interior side of the railing. This practical feature is particularly advantageous for installations on second floors, higher balconies, or in hard-to-reach areas where access is limited to just one side.
With the smallest base height and width on the market, our product is ideal for chic interior modern applications. Additionally, its versatile design makes it equally well-suited for outside applications, providing functionality and aesthetic appeal in various settings.
Representing the forefront of glass railing innovation, Our newly designed base shoe system does not require any specialized tools for installation. This product offers an optimal solution for the practical challenges encountered at construction sites of all kinds.
No Special Tools Required. Installation or removal necessitates solely an Allen Key.
Through its anodized aluminum decorative cladding, the base shoe system is offered in two finishes: polished stainless steel and matte black
Our Base Shoe Comes with pre drilled holes at every 12” for speed up the installation process.
Key Features & Benefits:
– Crafted from 6063-T6 aluminum, our product guarantees both strength and corrosion resistance
– With the smallest base height and width on the market, our product is ideal for chic interior modern applications.
– Cladding available in Decorative Anodized Finish
– The Adjustable Angle Clamping Mechanism simplifies the installation process significantly.
– Installation can be achieved fully frameless, with the added benefit of easy panel alignment.
– Suitable for typical outside applications.
– Installation is carried out from one side only.
– Sleek Modern Look Design
– Innovative design with a pending patent.
THE KIT INCLUDES
| Product | SKU | Qty |

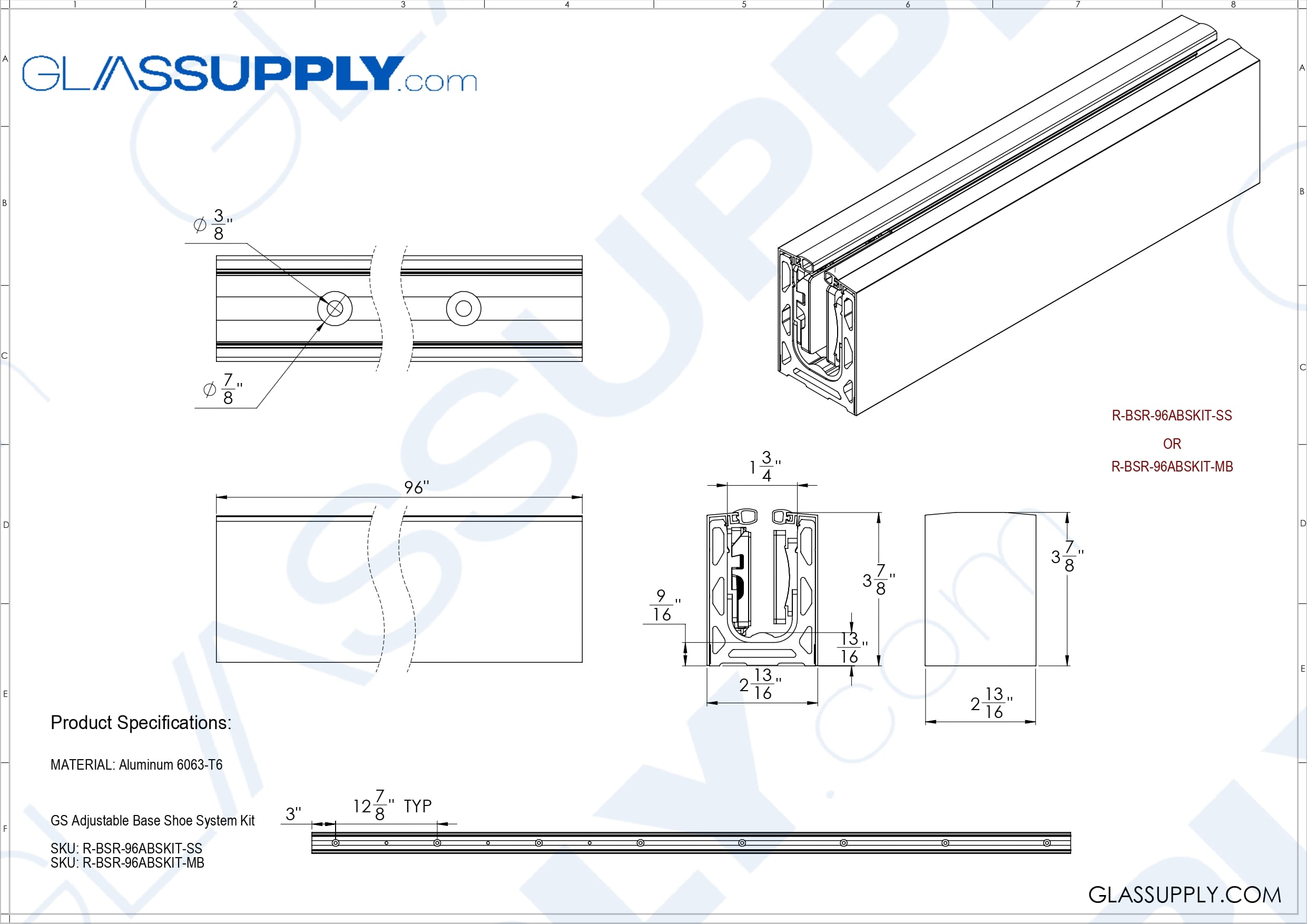

| Aluminum Base Shoe | R-BSR-96ABS-MF | 1 |

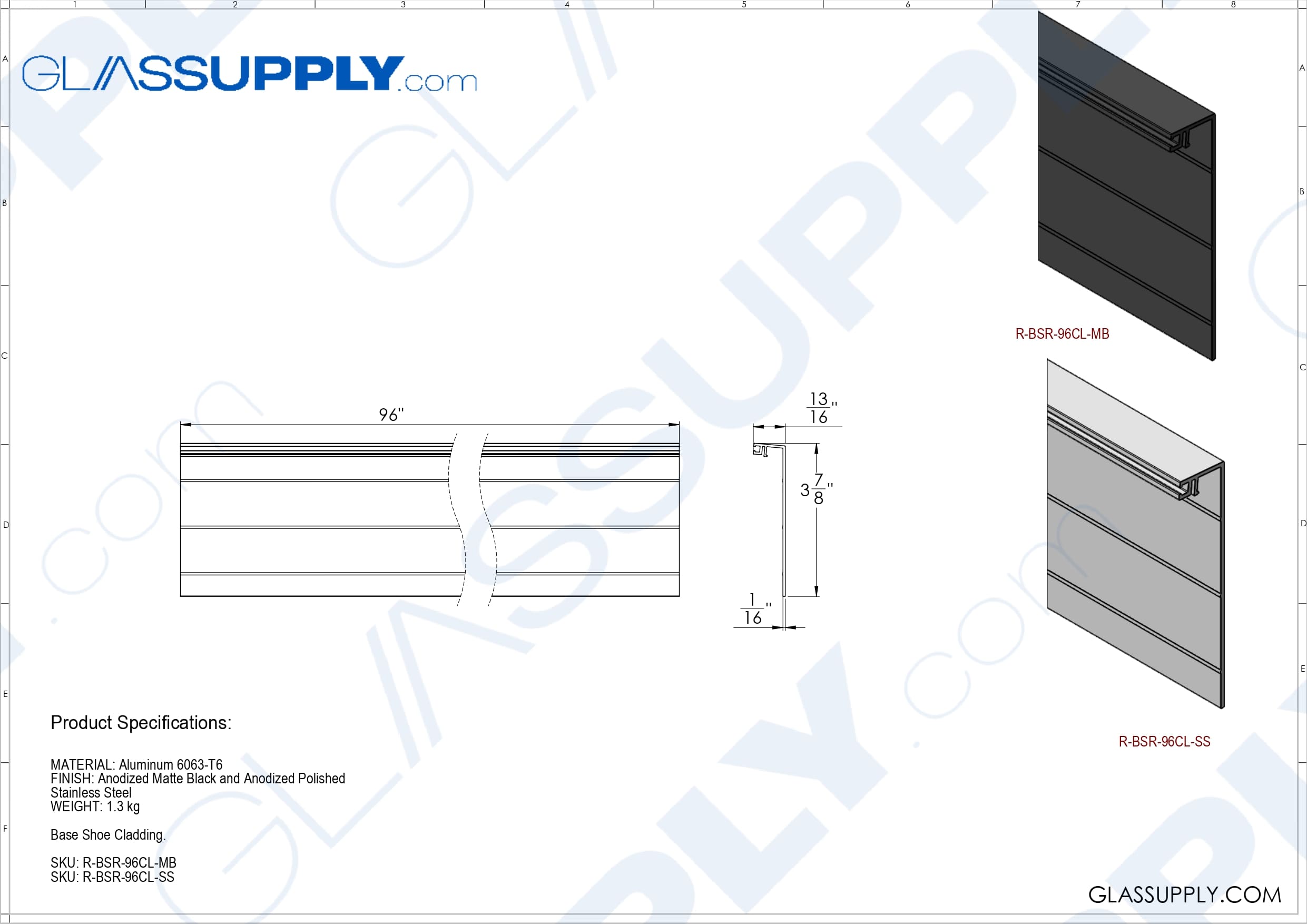

| Base Shoe Cladding | R-BSR-96CL-XX | 2 |
| Inside Cladding Gasket | R-BSR-ICG-BK | 1 |
| Outside Cladding Gasket | R-BSR-OCG-BK | 1 |
| GS Adjustable Clamping Device for Base Shoe) | R-BSR-ACD-00 | 6 |
| Profile Joining Pin | R-BSR-PJP-MF | 2 |
| Base Shoe End Cap | R-BSR-EC | 2 |
TECHNICAL SPECIFICATIONS
| Safety Glass Thickness | 1/2” (12 mm) to 9/16” (13.5 mm) glass panels |
| Cladding Color/Finish | Anodized Polished Stainless Steel, Anodized Matte Black |
| Manufacturing Material | Aluminum 6063-T6 |
| Recommended Location Usage | Interior, Exterior |
| Recommended Usage | Railing, Pool Fencing,Guardrail,
Deck Railing, Interior railing |
-
-
