Inside Corner Fascia Mounted 2 1/4″ Square Post Kit
Inside Corner Fascia Mounted 2 1/4″ Square Post Kit
$69.00
Introducing our GS 2 1/4″ Square Post Kit for Inside Corner Fascia Mounted applications, a cornerstone component ideally suited for our GS Aluminum Fascia Mounted Framed Railing system. This robust post serves as a fundamental element in ensuring the structural integrity and stability of our GS Aluminum Framed railing solution but can also be used for other applications.
The Inside Corner Fascia Mounted Post is designed for secure attachment to the outside fascia board of a deck or any other surface, ensuring stability and reliability.When confronted with surfaces featuring a drip edge or nosing, employing multiple 1/2″ Corner Fascia Bracket Shims stacked together can effectively clear the overhang of the nosing. Corner Bracket Shim are Sold Separately.
The primary benefit of utilizing a fascia mounted system is the ability to save over 4 inches of deck space compared to surface mounted posts.
Achieve the utmost aesthetic appeal with our post and Aluminum framed railing system, boasting no visible screws or welding marks for a seamless finish.
Designed to simplify the installation of glass panels, including on uneven horizontal surfaces,
The Post Kit Comes equipped with a fascia mounted support, post cap, Lag Head and Phillip Head Screw Covers.
For Fascia Mounted Posts secured on a straight line, opt for the The Straight 2 1/4″ Fascia Mounted Post Kit.
For Fascia Mounted Posts secured on an Outside corner, opt for the The Outside Corner 2 1/4″ Fascia Mounted Post Kit.
Also Available with a Top Mounted Base.
Key Features & Benefits:
– These posts are meticulously engineered for seamless integration and long-lasting performance.
– Internal screw pilots geometry within the Internal section of the post Section make connections to other system components effortlessly and concealed.
– Each post’s 2 -1/4 ” square design with tight radius corners offers sturdiness while minimizing obstruction of views and maintaining a sleek, contemporary look.
– Constructed from 6063-T6 aluminum, these posts guarantee strength and Glass Support without any sagging and or additional support needed.
– AAMA 2604 powder coating provides top of the line durability.

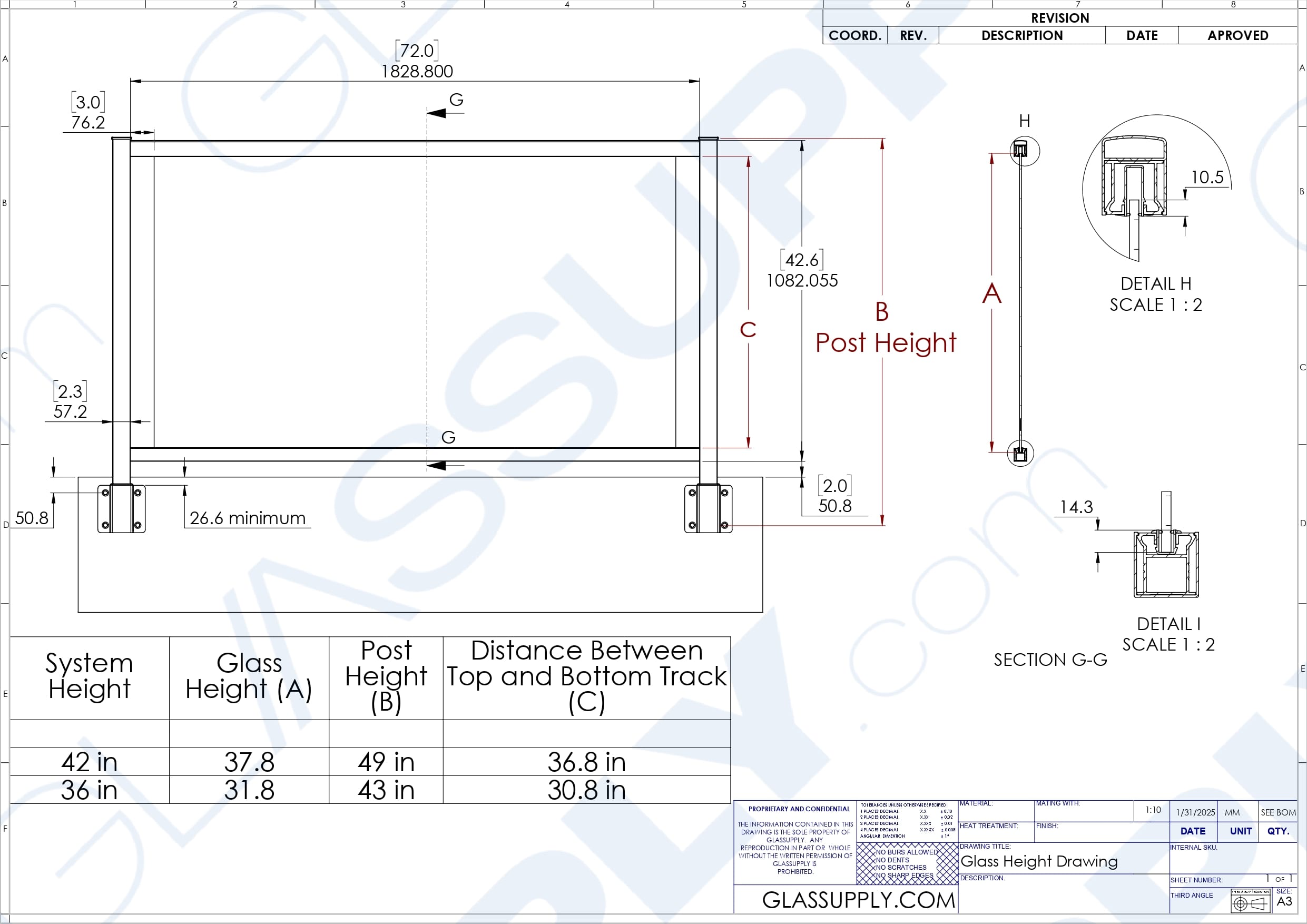

– Available in final rail heights of 36” 42″ and 48”, these posts cater to various project requirements.
– Post Cap Tight Press Fit System, no glue or silicone required
THE KIT INCLUDES
| Product | SKU | Qty |
| 2 1/4″ Square Post | R-AFR-49PO-XX | 1 |
| Fascia Mounted Inside Corner Bracket Support | R-AFR-FMICB-XX | 1 |
| Post Cap | R-AFR-PC | 1 |
| Lag Head Screw Covers | R-AFR-CLS-XX | 4 |
| Flat Head 18-8 Stainless Steel, #10 Size, 1″ Long (for Bracket to Post) | R-AFR-FMSCW10-1-00 | 2 |
TECHNICAL SPECIFICATIONS
| Surface Treatment | Powder Coated |
| Color/Finish | White, Black |
| Manufacturing Material | Aluminum 6063-T6 |
| Recommended Usage | Railing, Pool Fencing,Guardrail, Deck Railing |
-
-
