The GS Hydraulic Top-Bottom Patch Door Kit – 90° is engineered for smooth operation, durability, and effortless installation. With a maximum opening of 150° and a 90° hold-open function, this system is ideal for modern interior glass doors in commercial and residential spaces.

Compatible with our Office Partition Door Frame Kit OP-EX-DFK.No adapter required when mounted directly onto the ceiling. Use our office door adapter kit when installing with a toplight.

Key Features:

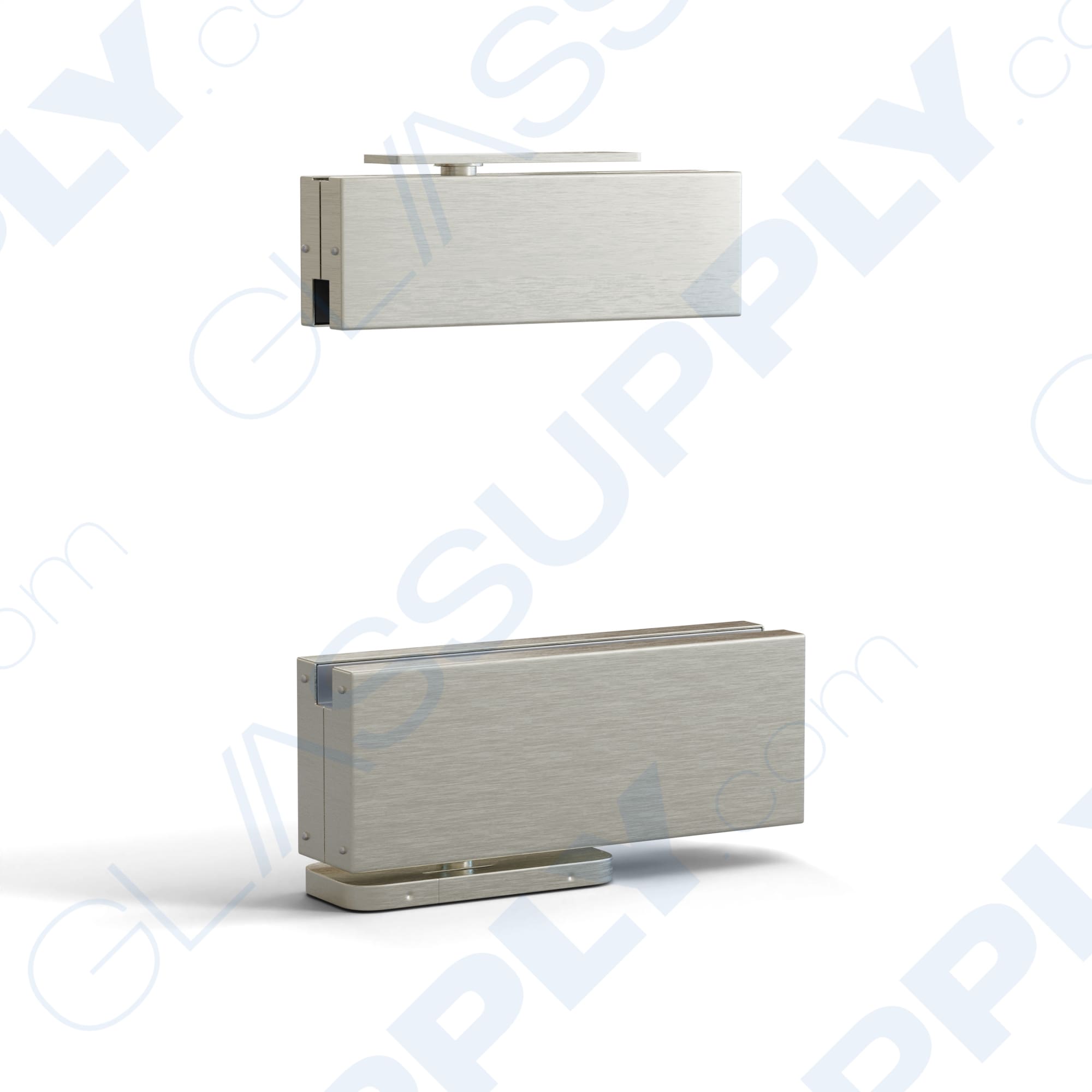

– Complete Hydraulic Pivot Hinge System – Includes top patch, pivot, and bottom-mounted hydraulic hinge for a seamless and reliable door function.
– Adjustable Hydraulic Speed Control – Features a speed-adjusting valve for precise control over braking and closing speeds, ensuring a soft-closing, self-closing action.
– Flexible Installation – Compatible with our office partition system when used with the door adaptor kit, or it can be mounted directly to the ceiling without additional kits.
– Easy Door Alignment – The pivot hinge base is adjustable by ±4mm (±10°) for quick and hassle-free door alignment.
– Glass Compatibility – Supports glass thickness from 5/16″ to 9/16″ (8mm to 13.5mm), providing versatility for various applications.
– Weight & Size Capacity – Handles doors up to 110kg (242 lbs) with a maximum width of 42″ (1067mm).
– Designed for Moderate Commercial Traffic Areas – Ensures smooth performance and long-lasting durability, making it ideal for office spaces, retail environments, and interior partitions.

——–

This top and bottom pivot hydraulic hinges kit offers a high-end, reliable solution for glass door installations in commercial and residential settings.

Includes:

Gaskets for all glass thickness, screws, metal floor anchors and sleeve.

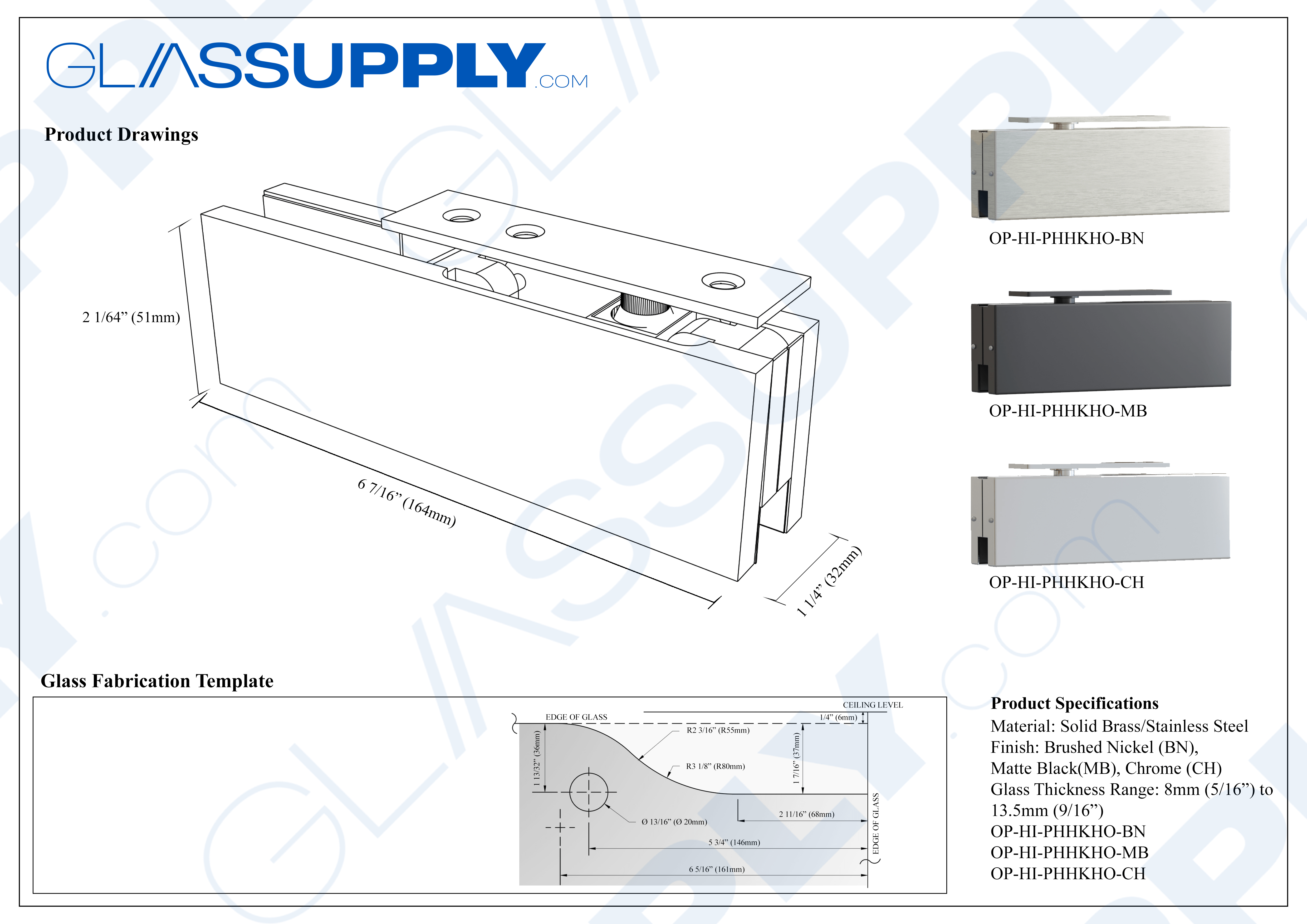

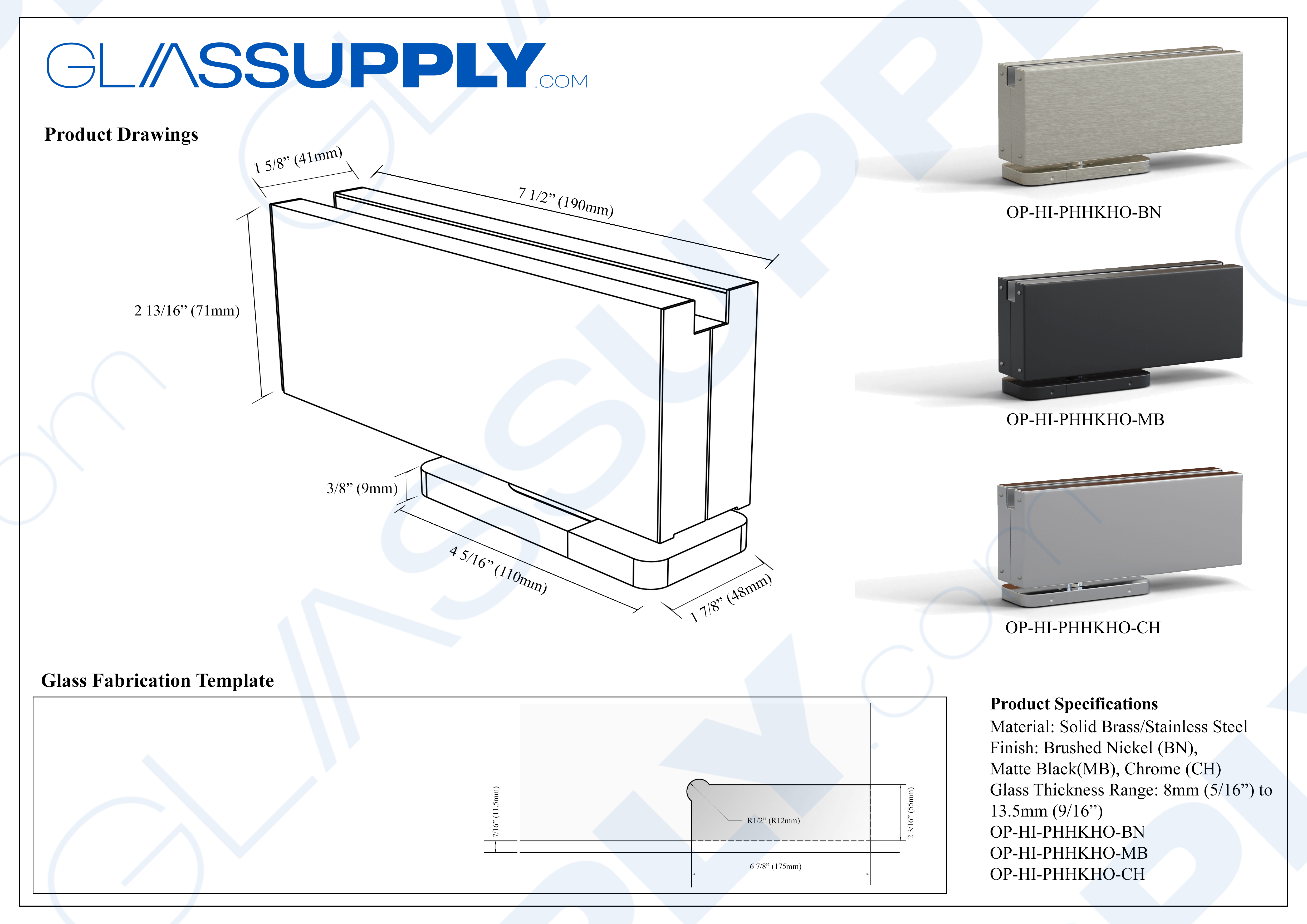

Note that glass fabrication is required to accommodate the Bottom hinge and top Patch

Our Glass hardware finishing process includes three different applied methods, each resulting in a durable, corrosion-resistant, and visually appealing finish. These methods include electrophoresis (Matte Black), chrome plating (Chrome), and nickel plating (Brushed Nickel). Regardless of the chosen option, our hardware finish process guarantees a beautiful, long-lasting finish that meets the highest industry standards for quality and durability, providing exceptional performance and visual appeal.

TECHNICAL SPECIFICATIONS

*The term “50000 cycles open/close” is a test commonly used to measure the durability and lifespan of door hinges. It means that the hinge has been tested to withstand opening and closing the door 50,000 times without failing or showing signs of wear and tear.
